Production Machining

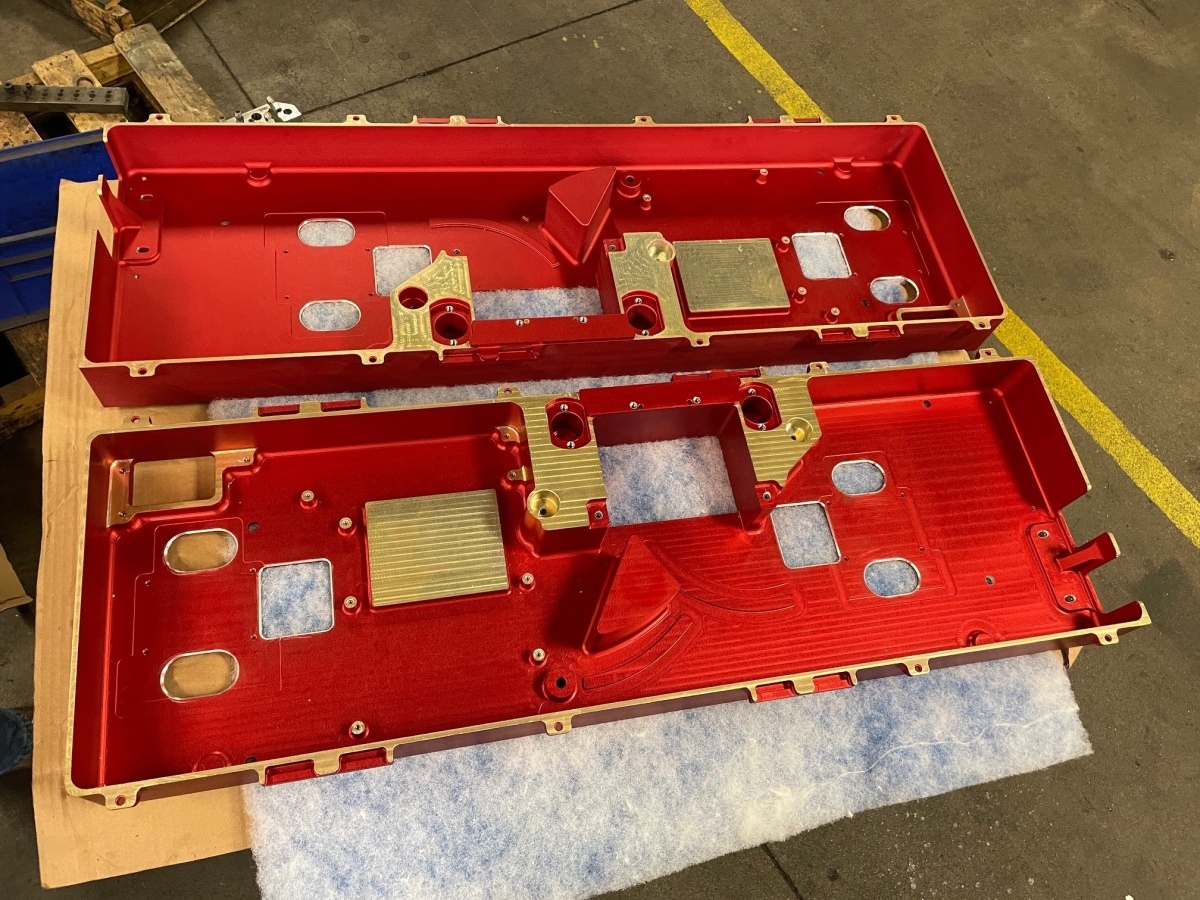

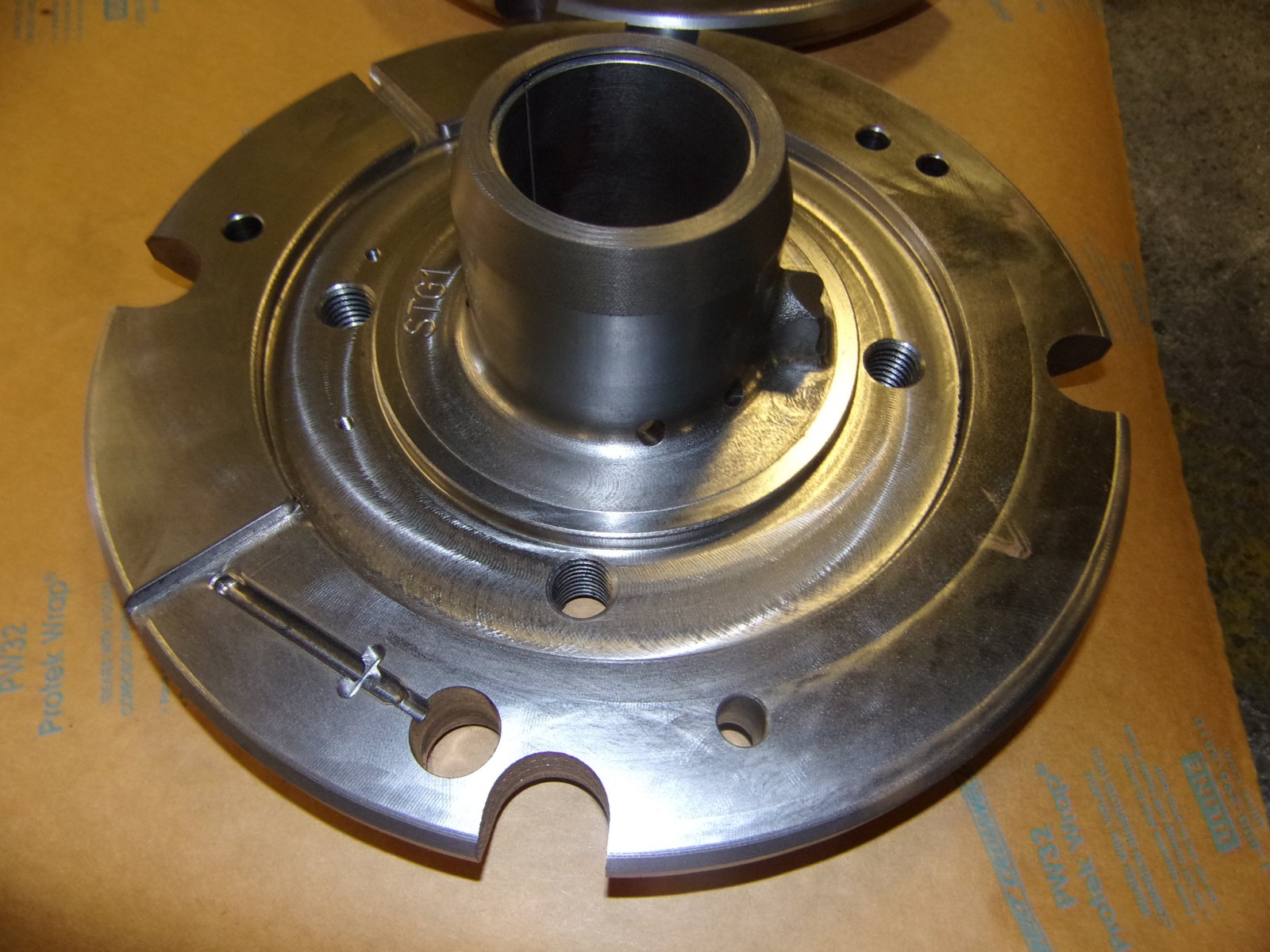

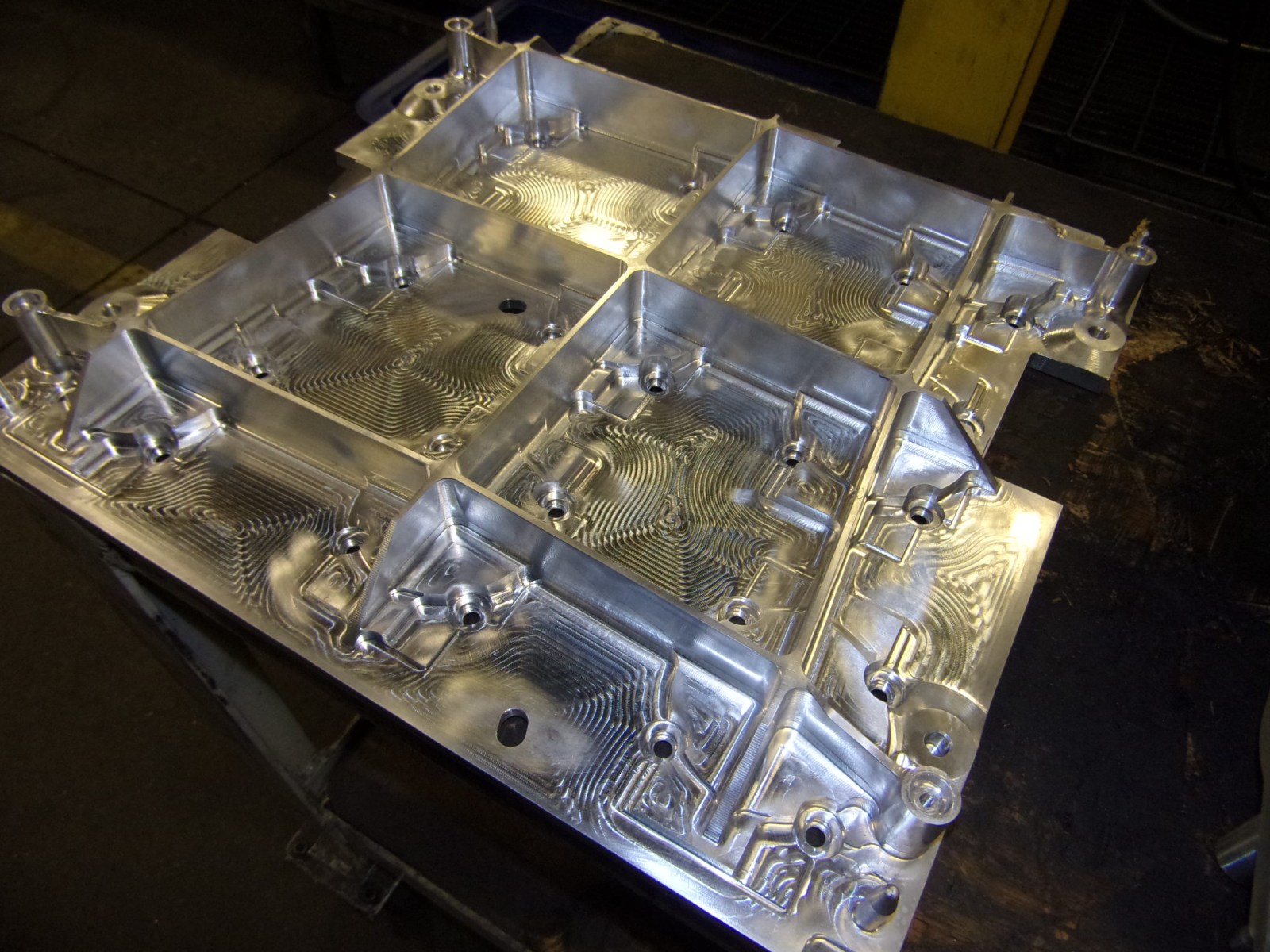

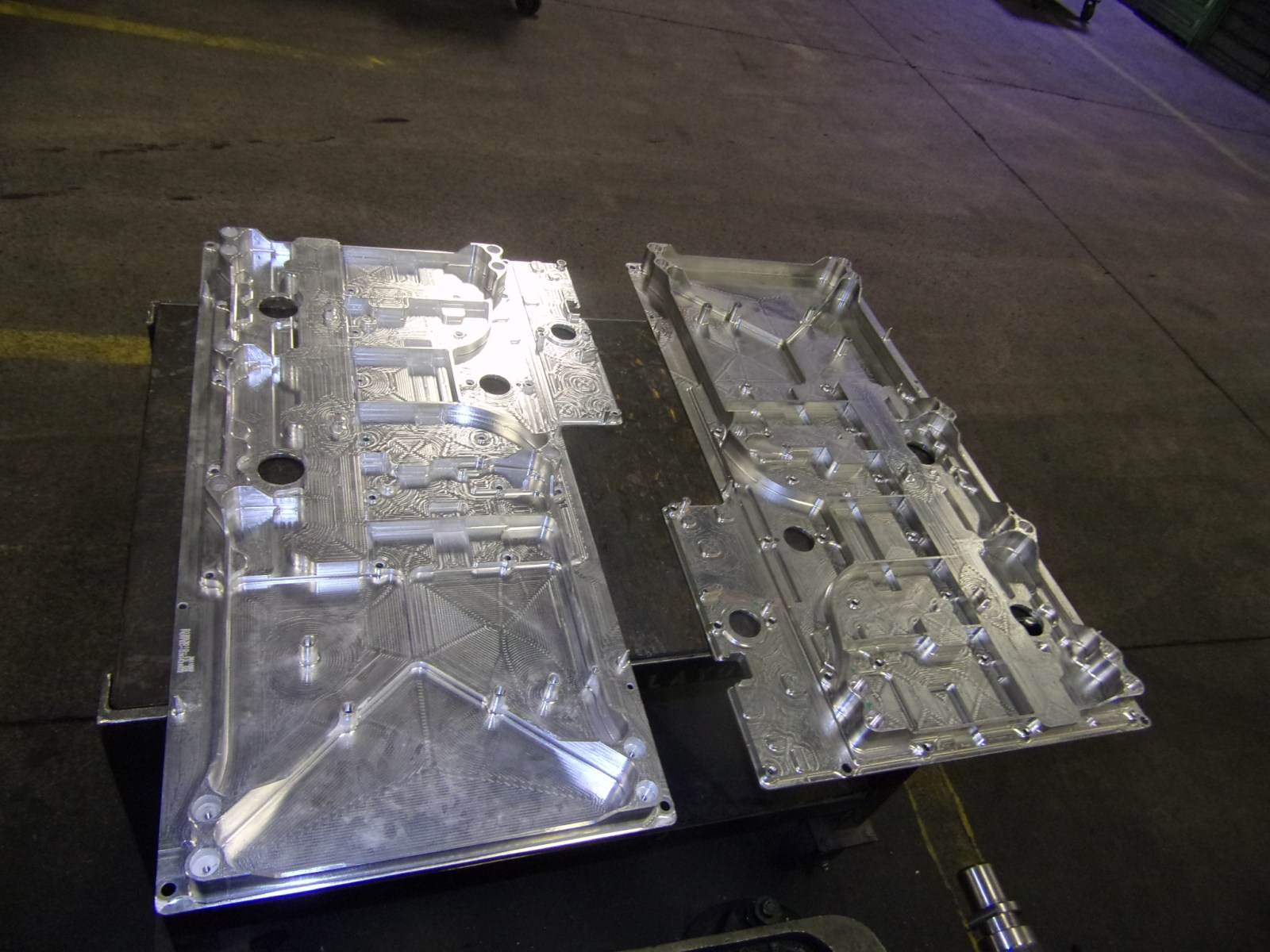

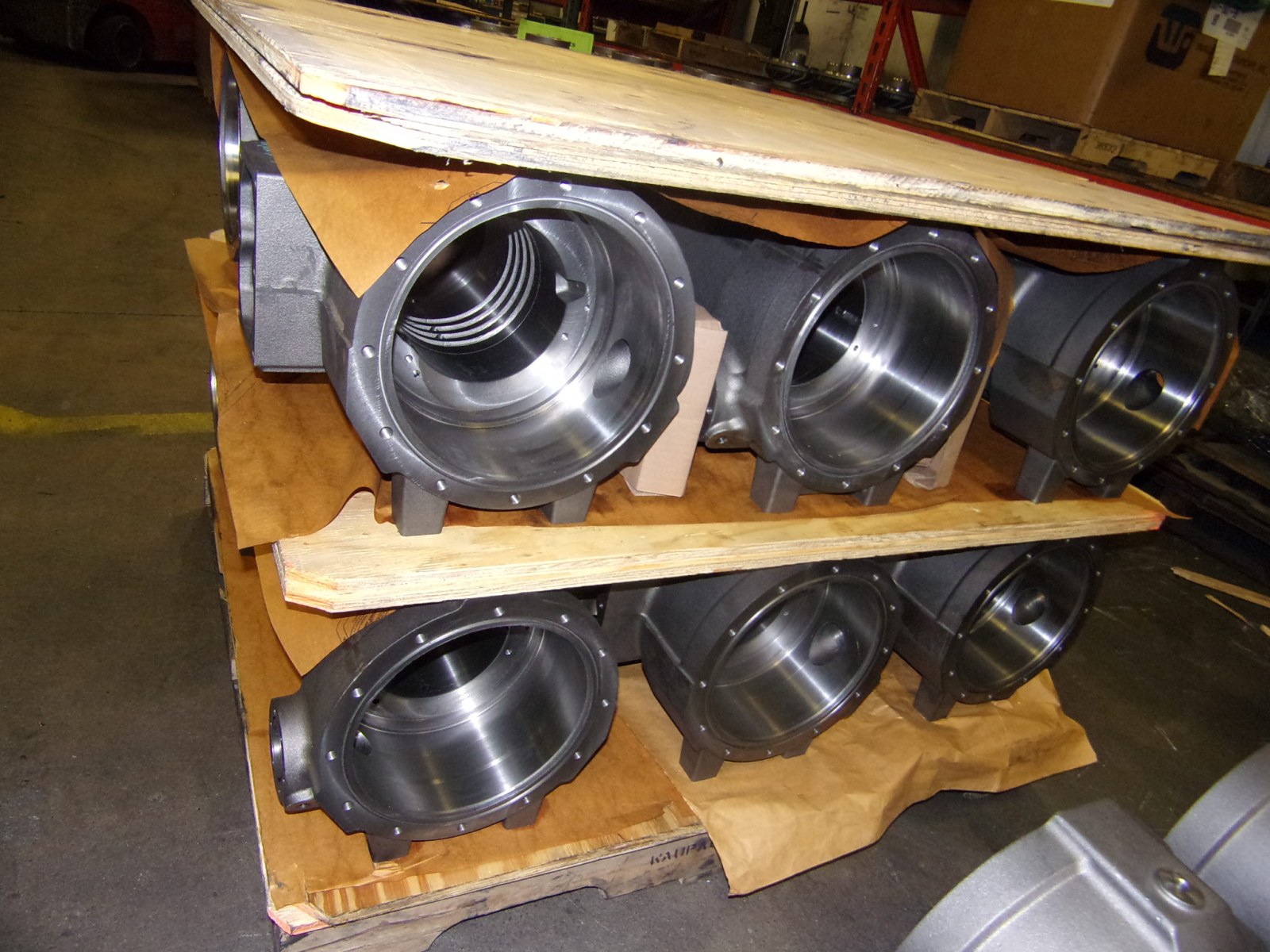

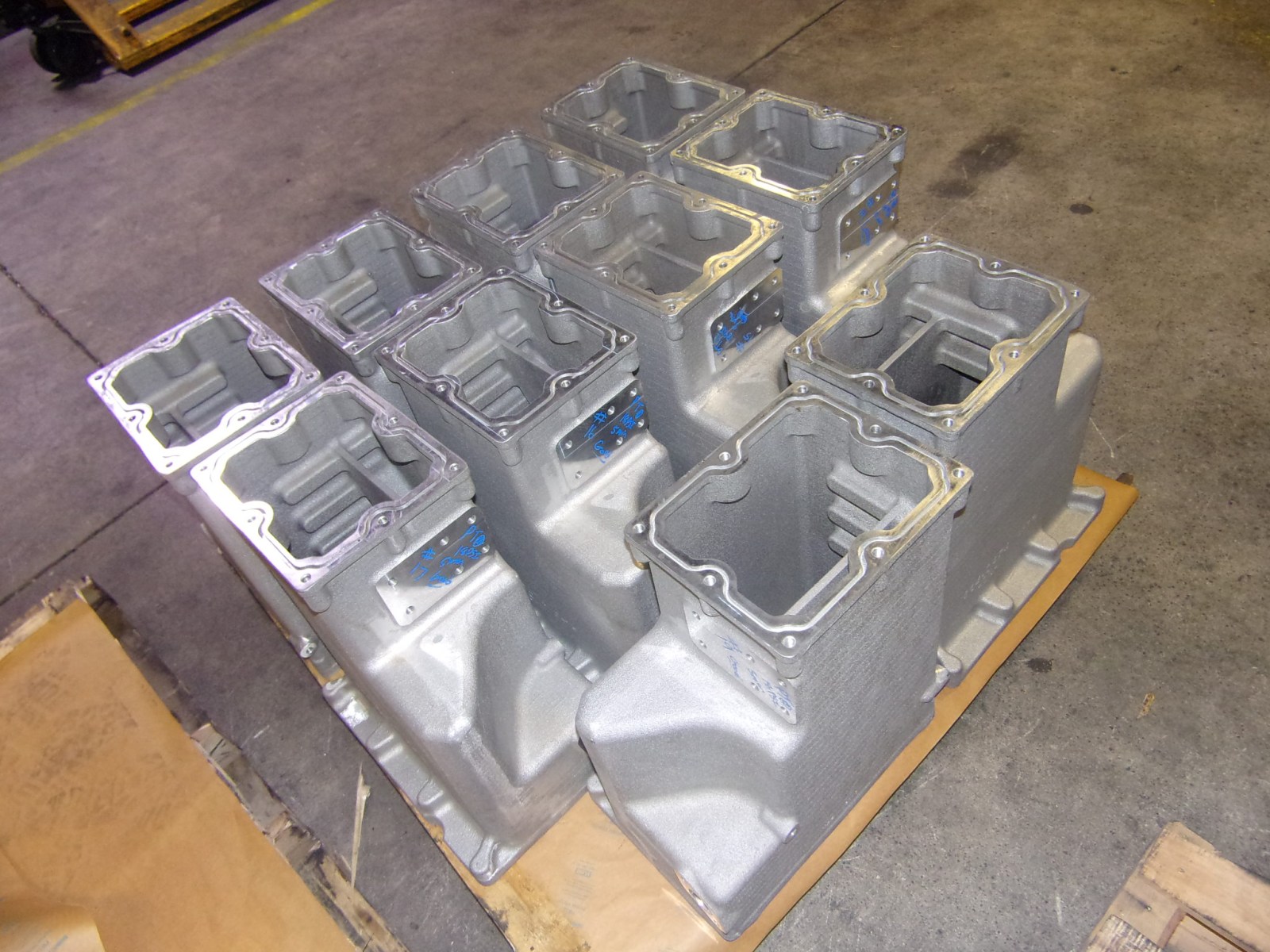

In addition to our well-known pattern shop, Perfect Patterns can machine your castings on our state-of-the-art 4-axis machining centers and high-speed lathes. Our 40hp mills coupled with its pallet changing system ensures castings can be machined and on their way to customers in industry-leading time
Fixtures
For both in- and out-of-house applications, our fixtures can fit your unique needs. From plastic fixtures for core assembly and gluing, to steel fixtures with pneumatic and/or hydraulic clamping devices for CNC machining, we can design and create to your specification.
Equipment List
Horizontals
- (2) DMG NHX8000 55.1″ x 47.2″ x 53.1″ (Robot Load)
- (2) DMG NHX6300 41.3″ x 35.4″ x 40.6″ (Robot Load)
- (4) DMG NHX5500 31.5″ x 31.5″ x 34.6″
- (1) Makino A88 35.43″ x 31.49″ x 38.1″
- (1) Makino A71 28.7″ x 28.7″ x 31.5″ (Robot Load)
- (1) Makino A61 28.7″ x 25.6″ x 28.7 (Robot Load)
- (1) Makino A51 22″ x 22″ x 23.6″
- (1) Haas EC630 40″ x 37″ x 40″
- (1) Haas EC1600 64″ x 50″ x 32″
Lathes
- (2) Okuma 2SP-V40 Dual Spindle 15.75″ Dia x 17.72″
- (1) Haas SL40 25.5″ Dia x 34″
Verticals
- (1) Haas VF2SS w/ Haas Robot Load 30″ x 16″ x 20″
- Fadal 4020 40″ x 20″ x 24″
Automated Flyweel/Brake Rotor Turning Cell
- (3) Muratec Murata MW400 Dual Spindle, Gantry Load 16″ Dia x 8.4″
- (2) Haas VF2SS 30″ x 16″ x 20″
- (2) Fanuc R2000 Load with Vision
- Dot Peen Date and Serial Number Engraver
CMM
- Hexagon SF 7.10.7
- Hexagon Global S 9.12.8
